2-Propenoic acid, 3-(3,4-dimethoxyphenyl)-, methyl ester


IR Spectrum

Go To: Top, References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: Coblentz Society, Inc.

Condensed Phase Spectrum

Notice: This spectrum may be better viewed with a Javascript and HTML 5 enabled browser.

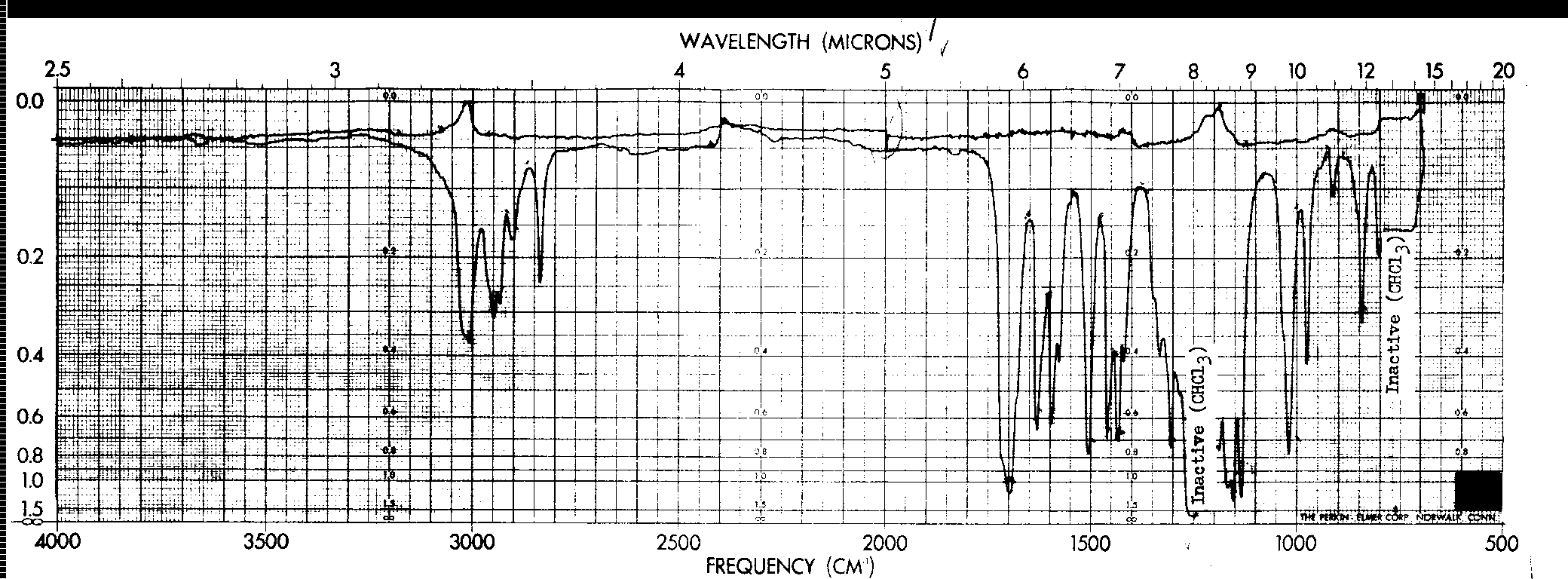

IR spectrum
For Zoom
1.) Enter the desired X axis range (e.g., 100, 200)
2.) Check here for automatic Y scaling
3.) Press here to zoom

Notice: Except where noted, spectra from this collection were measured on dispersive instruments, often in carefully selected solvents, and hence may differ in detail from measurements on FTIR instruments or in other chemical environments. More information on the manner in which spectra in this collection were collected can be found here.

Notice: Concentration information is not available for this spectrum and, therefore, molar absorptivity values cannot be derived.

Additional Data

View scan of original (hardcopy) spectrum.

View image of digitized spectrum (can be printed in landscape orientation).

View spectrum image in SVG format.

Download spectrum in JCAMP-DX format.

Owner Copyright (C) 1987 by the Coblentz Society
Collection (C) 2018 copyright by the U.S. Secretary of Commerce
on behalf of the United States of America. All rights reserved.
Origin ABBOTT LABORATORIES
Source reference COBLENTZ NO. 5250
Date 1964/07/14
Name(s) methyl (2E)-3-(3,4-dimethoxyphenyl)-2-propenoate
State SOLUTION 7% (CHCl3 FOR 2.5-12.5 microns)
Instrument PERKIN-ELMER 421 (GRATING)
Instrument parameters GRATING CHANGE AT 1999 CM-
Path length 0.01 CM
Resolution 2
Data processing (ADJUSTED addcm-15-5-0)
Melting point 68-70 C

This IR spectrum is from the Coblentz Society's evaluated infrared reference spectra collection.
