1,2-Ethanediamine, N,N'-bis(2-aminoethyl)-

Data at NIST subscription sites:

NIST subscription sites provide data under the NIST Standard Reference Data Program, but require an annual fee to access. The purpose of the fee is to recover costs associated with the development of data collections included in such sites. Your institution may already be a subscriber. Follow the links above to find out more about the data in these sites and their terms of usage.


Condensed phase thermochemistry data

Go To: Top, Phase change data, Reaction thermochemistry data, IR Spectrum, Mass spectrum (electron ionization), References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: Eugene S. Domalski and Elizabeth D. Hearing

Constant pressure heat capacity of liquid

Cp,liquid (cal/mol*K) Temperature (K) Reference Comment
89.9333.Bobylev, Kamskaya, et al., 1988T = 333 to 473 K.

Phase change data

Go To: Top, Condensed phase thermochemistry data, Reaction thermochemistry data, IR Spectrum, Mass spectrum (electron ionization), References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled as indicated in comments:
BS - Robert L. Brown and Stephen E. Stein
AC - William E. Acree, Jr., James S. Chickos

Quantity Value Units Method Reference Comment
Tboil539.7KN/AWeast and Grasselli, 1989BS
Quantity Value Units Method Reference Comment
Δvap20.2 ± 0.07kcal/molGSEfimova, Emel'yanenko, et al., 2010Based on data from 338. to 373. K.; AC
Δvap18.1kcal/molTGAAfzal, Butt, et al., 1988Based on data from 294. to 325. K. See also Efimova, Emel'yanenko, et al., 2010.; AC
Δvap17.0 ± 0.62kcal/molN/ASivokova, Matejicek, et al., 1967Based on data from 431. to 492. K. See also Efimova, Emel'yanenko, et al., 2010.; AC

Reduced pressure boiling point

Tboil (K) Pressure (atm) Reference Comment
430.20.026Weast and Grasselli, 1989BS

Enthalpy of vaporization

ΔvapH (kcal/mol) Temperature (K) Method Reference Comment
14.3446.AStephenson and Malanowski, 1987Based on data from 431. to 550. K. See also Dykyj, 1972.; AC

Reaction thermochemistry data

Go To: Top, Condensed phase thermochemistry data, Phase change data, IR Spectrum, Mass spectrum (electron ionization), References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: Hussein Y. Afeefy, Joel F. Liebman, and Stephen E. Stein

Note: Please consider using the reaction search for this species. This page allows searching of all reactions involving this species. A general reaction search form is also available. Future versions of this site may rely on reaction search pages in place of the enumerated reaction displays seen below.

Individual Reactions

1,2-Ethanediamine, N-(2-aminoethyl)- + Ethylenimine = 1,2-Ethanediamine, N,N'-bis(2-aminoethyl)-

By formula: C4H13N3 + C2H5N = C6H18N4

Quantity Value Units Method Reference Comment
Δr19.9 ± 1.0kcal/molCmDalin, Bobylev, et al., 1988liquid phase; solvent: Aqueous HCl; Kinetic

1,2-Ethanediamine, N,N'-bis(2-aminoethyl)- + Ethylenimine = Tetraethylenepentamine

By formula: C6H18N4 + C2H5N = C8H23N5

Quantity Value Units Method Reference Comment
Δr19.9 ± 1.1kcal/molCmDalin, Bobylev, et al., 1988liquid phase; solvent: Aqueous HCl; Kinetic

IR Spectrum

Go To: Top, Condensed phase thermochemistry data, Phase change data, Reaction thermochemistry data, Mass spectrum (electron ionization), References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: NIST Mass Spectrometry Data Center, William E. Wallace, director

Gas Phase Spectrum

Notice: This spectrum may be better viewed with a Javascript and HTML 5 enabled browser.

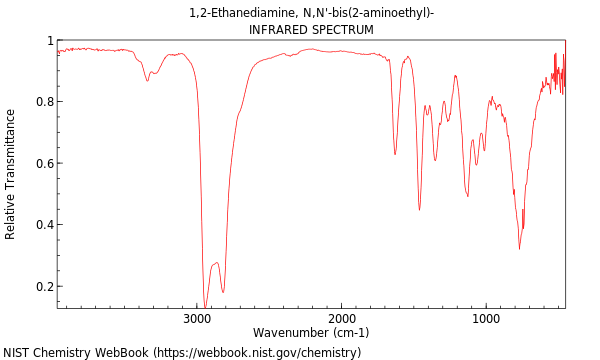

IR spectrum
For Zoom
1.) Enter the desired X axis range (e.g., 100, 200)
2.) Check here for automatic Y scaling
3.) Press here to zoom

Notice: Concentration information is not available for this spectrum and, therefore, molar absorptivity values cannot be derived.

Additional Data

View image of digitized spectrum (can be printed in landscape orientation).

View spectrum image in SVG format.

Download spectrum in JCAMP-DX format.

Owner NIST Standard Reference Data Program
Collection (C) 2018 copyright by the U.S. Secretary of Commerce
on behalf of the United States of America. All rights reserved.
Origin Sadtler Research Labs Under US-EPA Contract
State gas

This IR spectrum is from the NIST/EPA Gas-Phase Infrared Database .


Mass spectrum (electron ionization)

Go To: Top, Condensed phase thermochemistry data, Phase change data, Reaction thermochemistry data, IR Spectrum, References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: NIST Mass Spectrometry Data Center, William E. Wallace, director

Spectrum

Notice: This spectrum may be better viewed with a Javascript and HTML 5 enabled browser.

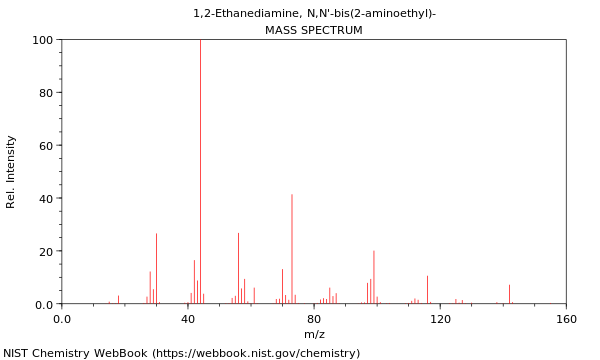

Mass spectrum
For Zoom
1.) Enter the desired X axis range (e.g., 100, 200)
2.) Check here for automatic Y scaling
3.) Press here to zoom

Additional Data

View image of digitized spectrum (can be printed in landscape orientation).

Due to licensing restrictions, this spectrum cannot be downloaded.

Owner NIST Mass Spectrometry Data Center
Collection (C) 2014 copyright by the U.S. Secretary of Commerce
on behalf of the United States of America. All rights reserved.
Origin RADIAN CORP
NIST MS number 76004

All mass spectra in this site (plus many more) are available from the NIST/EPA/NIH Mass Spectral Library. Please see the following for information about the library and its accompanying search program.


References

Go To: Top, Condensed phase thermochemistry data, Phase change data, Reaction thermochemistry data, IR Spectrum, Mass spectrum (electron ionization), Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Bobylev, Kamskaya, et al., 1988
Bobylev, V.A.; Kamskaya, O.I.; Kossoi, A.A.; Koludarova, E.Yu., Investigation of the heat capacity of ethyleneamines by differential scanning calorimetry, Zhur. Obshch. Khim., 1988, 58, 2536-2538. [all data]

Weast and Grasselli, 1989
CRC Handbook of Data on Organic Compounds, 2nd Editon, Weast,R.C and Grasselli, J.G., ed(s)., CRC Press, Inc., Boca Raton, FL, 1989, 1. [all data]

Efimova, Emel'yanenko, et al., 2010
Efimova, Anastasia A.; Emel'yanenko, Vladimir N.; Verevkin, Sergey P.; Chernyak, Yury, Vapour pressure and enthalpy of vaporization of aliphatic poly-amines, The Journal of Chemical Thermodynamics, 2010, 42, 3, 330-336, https://doi.org/10.1016/j.jct.2009.09.003 . [all data]

Afzal, Butt, et al., 1988
Afzal, M.; Butt, P.K.; Iqbal, M.J., J. Sci. Ind. Res., 1988, 31, 404. [all data]

Sivokova, Matejicek, et al., 1967
Sivokova, M.; Matejicek, A.; Juracka, F., Chem. Prum., 1967, 17, 4, 213. [all data]

Stephenson and Malanowski, 1987
Stephenson, Richard M.; Malanowski, Stanislaw, Handbook of the Thermodynamics of Organic Compounds, 1987, https://doi.org/10.1007/978-94-009-3173-2 . [all data]

Dykyj, 1972
Dykyj, J., Petrochemia, 1972, 12, 1, 13. [all data]

Dalin, Bobylev, et al., 1988
Dalin, A.R.; Bobylev, V.A.; Suslikov, V.F.; Kamskaya, O.I.; Tereshchenko, G.F., Nucleophilic cleavage and the formation of saturated heterocycles. VII. Kinetic and thermochemical study of reactions of aziridine with ethylene amines, J. Gen. Chem. USSR, 1988, 58, 1868-1871. [all data]
