Thiodipropionic acid
- Formula: C6H10O4S
- Molecular weight: 178.206
- IUPAC Standard InChI: InChI=1S/C6H10O4S/c7-5(8)1-3-11-4-2-6(9)10/h1-4H2,(H,7,8)(H,9,10)
- IUPAC Standard InChIKey: ODJQKYXPKWQWNK-UHFFFAOYSA-N
- CAS Registry Number: 111-17-1
- Chemical structure:
This structure is also available as a 2d Mol file or as a computed 3d SD file
The 3d structure may be viewed using Java or Javascript. - Other names: Propanoic acid, 3,3'-thiobis-; Propionic acid, 3,3'-thiodi-; β,β'-Thiodipropionic acid; Diethyl sulfide 2,2'-dicarboxylic acid; Thiodihydracrylic acid; Tyox A; TDPA; 3,3'-Thiodipropionic acid; 4-Thiaheptanedioic acid; 3,3'-Thiodipropanoic acid; Bis(2-carboxyethyl) sulfide; Kyselina β,β'-thiodipropionova; Sulfide, bis(2-carboxyethyl); Kyselina 3,3-thiodipropionova; 3,3'-Thiobis-propanoic acid; NSC 8166
- Permanent link for this species. Use this link for bookmarking this species for future reference.
- Information on this page:
- Other data available:
- Options:
IR Spectrum
Go To: Top, References, Notes
Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.
Data compiled by: Coblentz Society, Inc.

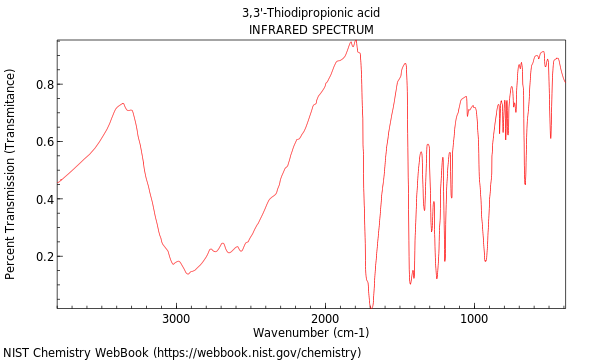

Condensed Phase Spectrum
Notice: This spectrum may be better viewed with a Javascript and HTML 5 enabled browser.
Notice: Except where noted, spectra from this collection were measured on dispersive instruments, often in carefully selected solvents, and hence may differ in detail from measurements on FTIR instruments or in other chemical environments. More information on the manner in which spectra in this collection were collected can be found here.
Notice: Concentration information is not available for this spectrum and, therefore, molar absorptivity values cannot be derived.
Additional Data

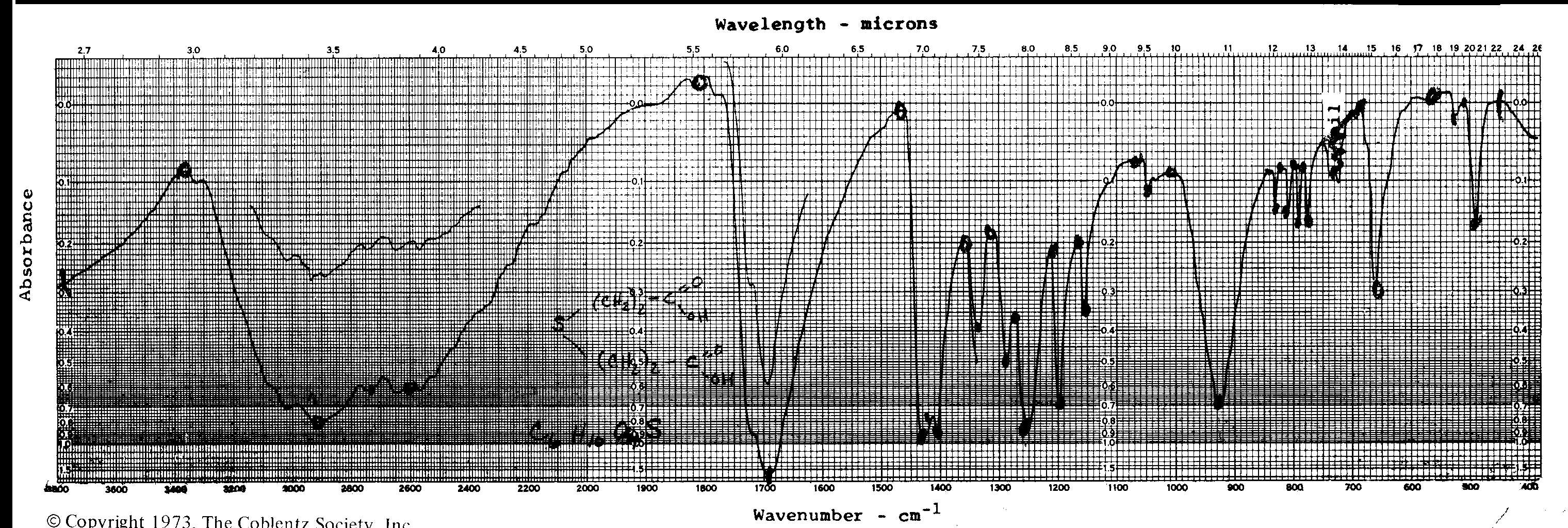

View scan of original (hardcopy) spectrum.
View image of digitized spectrum (can be printed in landscape orientation).
View spectrum image in SVG format.
Download spectrum in JCAMP-DX format.
| Owner | COBLENTZ SOC. Collection (C) 2018 copyright by the U.S. Secretary of Commerce on behalf of the United States of America. All rights reserved. |
|---|---|
| Origin | DOW CHEMICAL COMPANY |
| Source reference | COBLENTZ NO. 08971 |
| Date | 1967/10/19 |
| State | SOLID (SPLIT MULL), FLUOROLUBE FOR 3800-1330 CM-1, NUJOL FOR 1330-400 CM-1 SPECTRAL CONTAMINATION DUE TO OIL AROUND 720 CM-1 |
| Instrument | DOW KBr FOREPRISM-GRATING |
| Instrument parameters | BLAZED AT 3.5, 12.0, 20.0 MICRON AND CHANGED AT 5.0, 7.5, 14.9 MICRON |
| Resolution | 2 |
| Sampling procedure | TRANSMISSION |
| Data processing | DIGITIZED BY COBLENTZ SOCIETY (BATCH I) FROM HARD COPY |
| Melting point | 132 C |
References
Go To: Top, IR Spectrum, Notes
Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.
No reference data available.
Notes
Go To: Top, IR Spectrum, References
- Data from NIST Standard Reference Database 69: NIST Chemistry WebBook
- The National Institute of Standards and Technology (NIST) uses its best efforts to deliver a high quality copy of the Database and to verify that the data contained therein have been selected on the basis of sound scientific judgment. However, NIST makes no warranties to that effect, and NIST shall not be liable for any damage that may result from errors or omissions in the Database.
