Fumaric acid, 2-butyl dodecyl ester
- Formula: C20H36O4
- Molecular weight: 340.4974
- IUPAC Standard InChIKey: FBRYIIDNZXOVFJ-FOCLMDBBSA-N
- Chemical structure:
This structure is also available as a 2d Mol file
- Permanent link for this species. Use this link for bookmarking this species for future reference.
- Information on this page:
- Other data available:

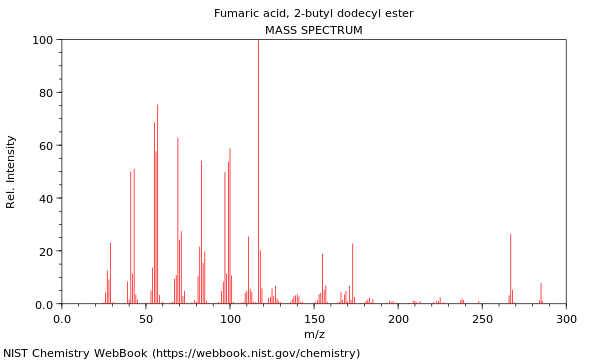

Mass spectrum (electron ionization)
Go To: Top, References, Notes
Data compiled by: NIST Mass Spectrometry Data Center, William E. Wallace, director
Select a region with data to zoom. Select a region with no data or click the mouse on the plot to revert to the orginal display.
The following components were used in generating the plot:
- jQuery UI
- Plugins for Flot:
Use or mention of technologies or programs in this web site is not intended to imply recommendation or endorsement by the National Institute of Standards and Technology, nor is it intended to imply that these items are necessarily the best available for the purpose.
View image of digitized spectrum (can be printed in landscape orientation).
Download spectrum in JCAMP-DX format.
|Owner||NIST Mass Spectrometry Data Center|
Collection (C) 2014 copyright by the U.S. Secretary of Commerce
on behalf of the United States of America. All rights reserved.
|Origin||V.G. Zaikin, R.S.Borisov, TIPS RAS, Moscow, Russia|
|NIST MS number||348649|
Go To: Top, Mass spectrum (electron ionization), Notes
No reference data available.
Go To: Top, Mass spectrum (electron ionization), References
