2,6,10,14-Tetramethyl-9-(3-methyl-pent-4-enylidene)-pentadeca-2,6(trans)-diene
- Formula: C25H44
- Molecular weight: 344.6169
- IUPAC Standard InChI: InChI=1S/C25H44/c1-9-22(6)16-18-25(24(8)15-11-13-21(4)5)19-17-23(7)14-10-12-20(2)3/h9,12,17-18,21-22,24H,1,10-11,13-16,19H2,2-8H3/b23-17+,25-18+
- IUPAC Standard InChIKey: NGTHMXZCVWHQKA-VAHBTUPDSA-N

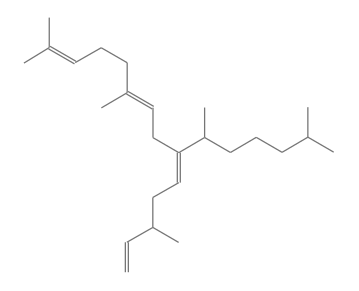

- Chemical structure:
This structure is also available as a 2d Mol file - Stereoisomers:
- Permanent link for this species. Use this link for bookmarking this species for future reference.
- Information on this page:
- Other data available:
- Options:
Normal alkane RI, non-polar column, temperature ramp
Go To: Top, References, Notes
Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.
Data compiled by: NIST Mass Spectrometry Data Center, William E. Wallace, director
| Column type | Capillary | Capillary |
|---|---|---|
| Active phase | HP-1 | HP-5 |
| Column length (m) | 12. | 30. |
| Carrier gas | He | He |
| Substrate | ||
| Column diameter (mm) | 0.2 | 0.25 |
| Phase thickness (μm) | ||
| Tstart (C) | 40. | 40. |
| Tend (C) | 300. | 300. |
| Heat rate (K/min) | 5. | 5. |
| Initial hold (min) | ||
| Final hold (min) | 10. | 10. |
| I | 2121. | 2130. |
| Reference | Belt, Allard, et al., 2000 | Belt, Allard, et al., 2000 |
| Comment | MSDC-RI | MSDC-RI |
References
Go To: Top, Normal alkane RI, non-polar column, temperature ramp, Notes
Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.
Belt, Allard, et al., 2000
Belt, S.T.; Allard, W.G.; Massé, G.; Robert, J.-M.; Rowland, S.J.,
Highly branched isoprenoids (HBIs): identification of the most common and abundant sedimentary isomers,
Geochim. Cosmochim. Acta, 2000, 64, 22, 3839-3851, https://doi.org/10.1016/S0016-7037(00)00464-6
. [all data]
Notes
Go To: Top, Normal alkane RI, non-polar column, temperature ramp, References
- Symbols used in this document:
Tend Final temperature Tstart Initial temperature - Data from NIST Standard Reference Database 69: NIST Chemistry WebBook
