Acetone

Data at NIST subscription sites:

NIST subscription sites provide data under the NIST Standard Reference Data Program, but require an annual fee to access. The purpose of the fee is to recover costs associated with the development of data collections included in such sites. Your institution may already be a subscriber. Follow the links above to find out more about the data in these sites and their terms of usage.


Infrared Spectrum

Go To: Top, References, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

Data compiled by: Pamela M. Chu, Franklin R. Guenther, George C. Rhoderick, and Walter J. Lafferty

Gas Phase Spectrum

Notice: This spectrum may be better viewed with a Javascript and HTML 5 enabled browser.

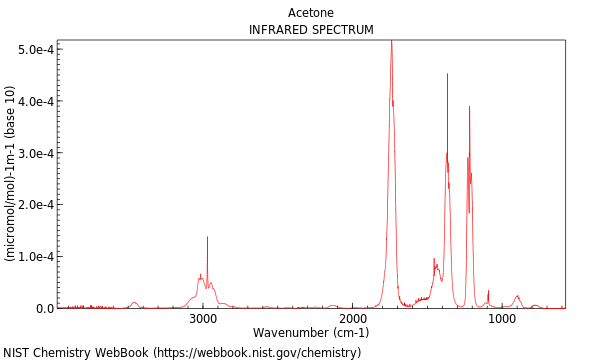

IR spectrum
For Zoom
1.) Enter the desired X axis range (e.g., 100, 200)
2.) Check here for automatic Y scaling
3.) Press here to zoom

Additional Data

View image of digitized spectrum (can be printed in landscape orientation).

View spectrum image in SVG format.

Download spectrum in JCAMP-DX format.

Owner COPYRIGHT (C) 1998 by the U.S. Secretary of Commerce
Origin NIST, Anayltical Chemistry Division, 301-975-3108
Date 98/10/1
Spectra Version 1.00
Uncertainty in Y 2.3 % relative (B=1.3E-04,C=1.7E-09,D=2.7E-14)
Name (CAS convention) 2-Propanone
State gas
Instrument IFS66V (Bruker)
Instrument parameters KBr Beam splitter; MCT Detector; Multipass cell
Resolution 0.2410
Sampling procedure 1 L/min Flow
Data processing Triangular Apodization
Sample description Acetone Primary Gas Standard
Sample temp. (C) 23 C
Sample pressure 101.3 kPa
Melting point -95.35 C
Boiling point 56.2 C

References

Go To: Top, Infrared Spectrum, Notes

Data compilation copyright by the U.S. Secretary of Commerce on behalf of the U.S.A. All rights reserved.

No reference data available.


Notes

Go To: Top, Infrared Spectrum, References
